Pilot Plant

Our In house Piolet plant and Lab Test centre are equipped to conduct pilot trials with the utmost precision and reliability. We have over 35+ years of experience across diverse applications, we develop comprehensive trial plans that are Customized to meet specific client needs. Each application undergoes a thoroughly assessment at the laboratory scale, ensuring detailed and accurate evaluations. Our performance guarantees are based on the outcomes of these trials, providing our clients with a high level of confidence and assurance.

Pilot Plant & Lab Scale Unit Setup


Short Path Distillation Unit

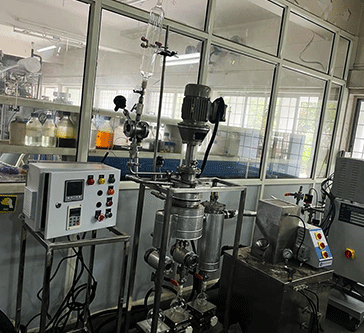

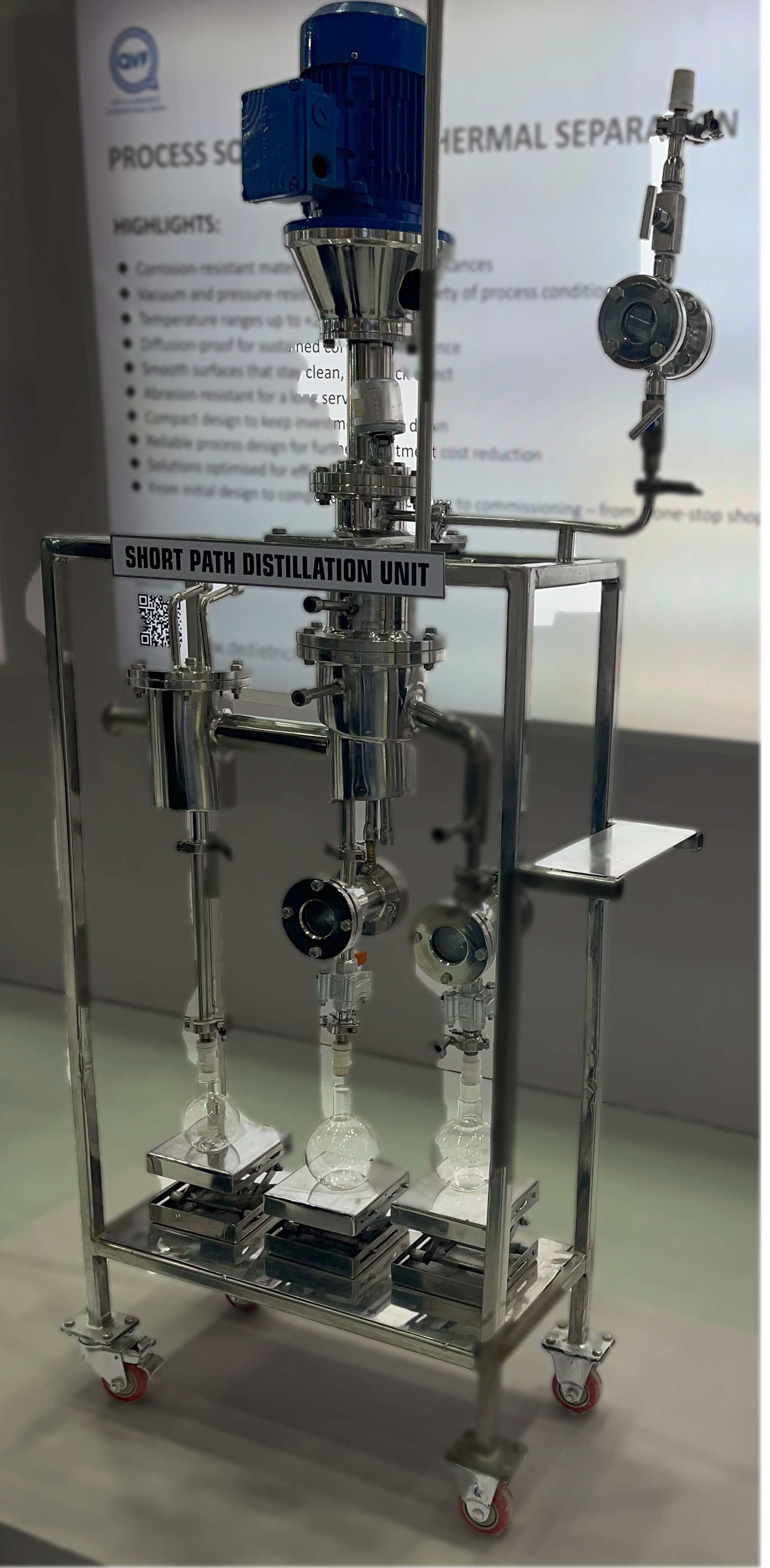

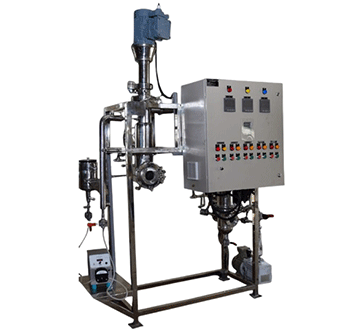

Lab SPDU Set up

Features of Lab SPDU Set up

  • Suitable for feed rate of 1-2 lit/hr
  • Heating by thermic fluid or steam up to 300 °C
  • Achievable pressure down to 0.001 mbar
  • Very low residence time
  • Required distillation achieved in single pass
  • Suitable heat sensitive product

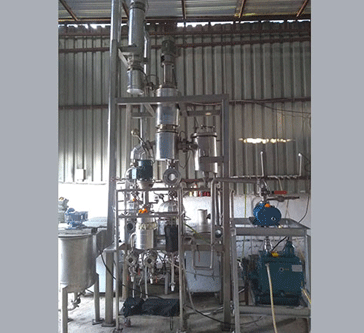

Pilot Plant SPDU

Features of Pilot Plant SPDU

  • Along with degasser
  • Suitable for feed rate of 10-20 lit/hr
  • Heating by thermic fluid & steam up to 400 °C
  • Achievable pressure down to 0.001 mbar
  • Very low residence time
  • Required distillation achieved in single pass
  • Suitable heat sensitive product
  • Completely jacketed (trace-heated) systems
Contact Us
Contact Details
Product Details
Bottoms or concentrate

Agitated Thin Film Dryers

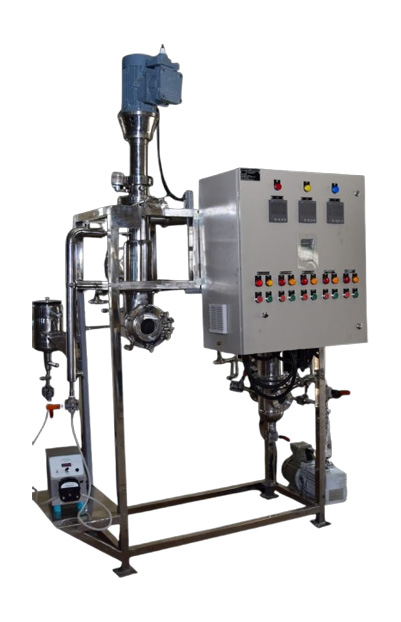

Lab ATFD

Features of Lab ATFD

  • Lab ATFD Suitable for feed rate of 1-2 lit/hr
  • Heating by hot water or steam up to 200°C
  • Achievable pressure down to 1 mbar
  • Very low residence time
  • Required recovery of solvent can be achieved with external condenser

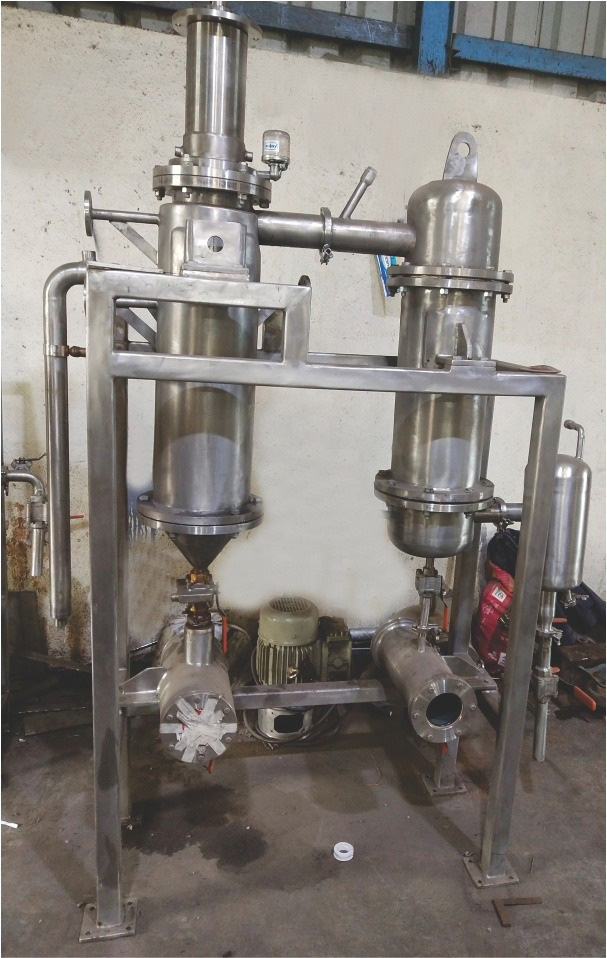

Pilot Plant ATFD

Features of Pilot Plant ATFD

  • Pilot plant ATFD Suitable for feed rate of 10-20 lit/hr
  • Heating by hot water or steam up to 200°C
  • Achievable pressure down to 1 mbar
  • Very low residence time
  • Required recovery of solvent can be achieved with external condenser
Contact Us
Contact Details
Product Details
Bottoms or concentrate

Lab ATFD / Pilot Plant ATFD

Features of Lab ATFD / Pilot Plant ATFD

  • Lab ATFD Suitable for feed rate of 1-2 lit/hr & Pilot plant ATFD Suitable for feed rate of 10-20 lit/hr
  • Heating by hot water or steam up to 200°C
  • Achievable pressure down to 1 mbar
  • Very low residence time
  • Required recovery of solvent can be achieved with external condenser

Agitated Thin Film Evaporator

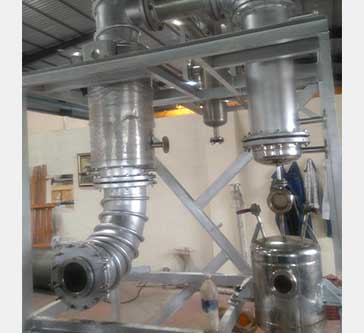

Pilot Plant ATFE

Features of Pilot Plant ATFE

  • Suitable for feed rate of 8-15 lit/hr
  • Heating by hot water or steam or thermic fluid up to 400°C
  • Achievable pressure down to 1 mbar
  • Low residence time eliminate thermal degradation
  • No scale formation of heat transfer surfaces
  • Suitable for highly viscous solutions
  • Well suitable heat sensitive product

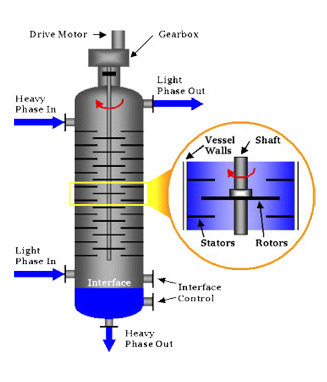

Liquid-Liquid Extractor Pilot Plant (LLE)


Lab LLE

Features of Lab LLE

  • Suitable for feed rate of 10-20 lit/hr of light phase or heavy phase
  • Suitable for continuous extraction
  • Improvement in yield
  • Reduction in quantity of solvent required
  • Less space & less power requirement

Pilot Plant LLE

Features of Pilot Plant LLE

  • Suitable for feed rate of 10-20 lit/hr of light phase or heavy phase
  • Suitable for continuous extraction
  • Improvement in yield
  • Reduction in quantity of solvent required
  • Less space & less power requirement

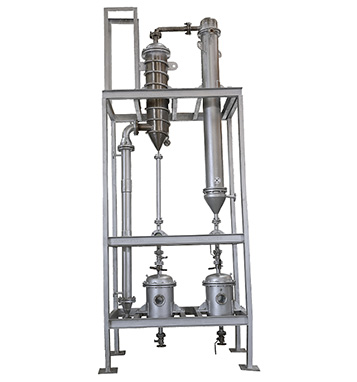

Rising Film & Falling Film Evaporator Pilot Plant

Features of our Rising film & falling film

  • Suitable for feed rate of 10-20 lit/hr
  • Heating by hot water or thermic fluid or steam up to 300 °C
  • Can operate under reasonable vacuum
  • Low residence time
  • Suitable for heat sensitive products
